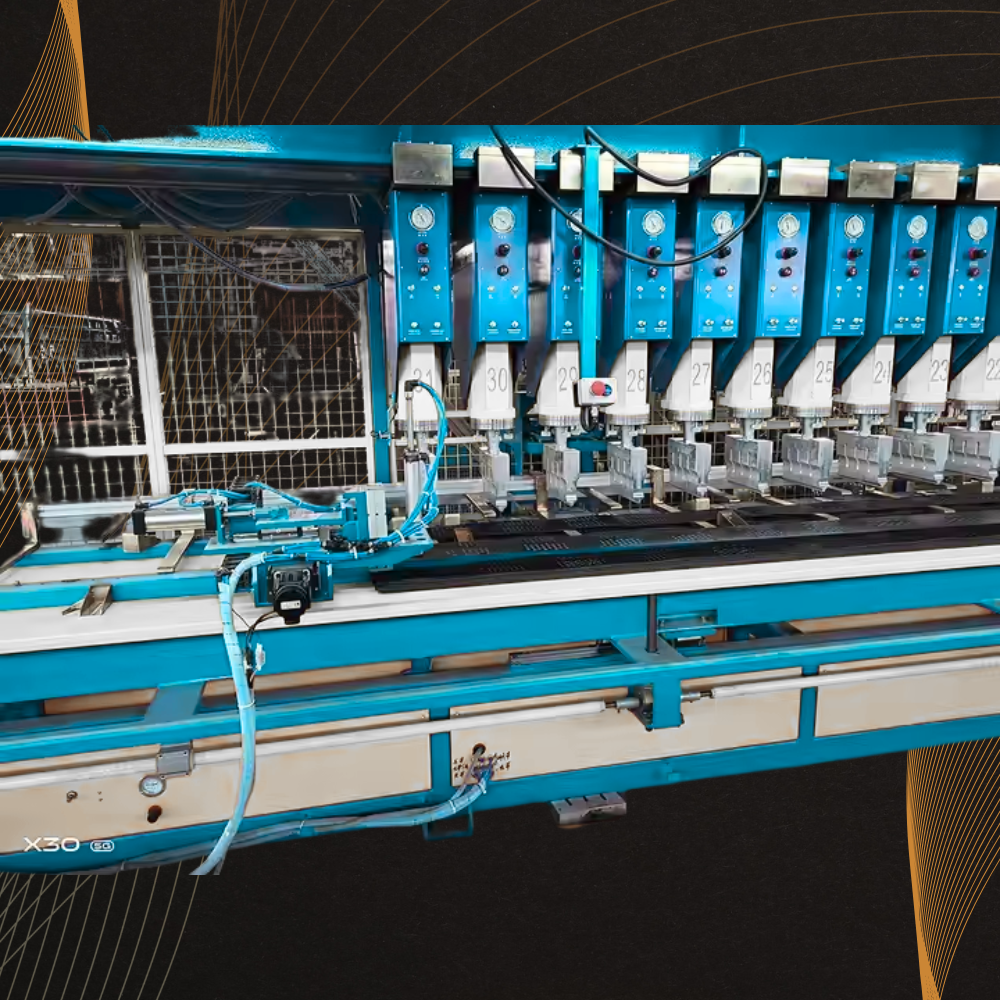

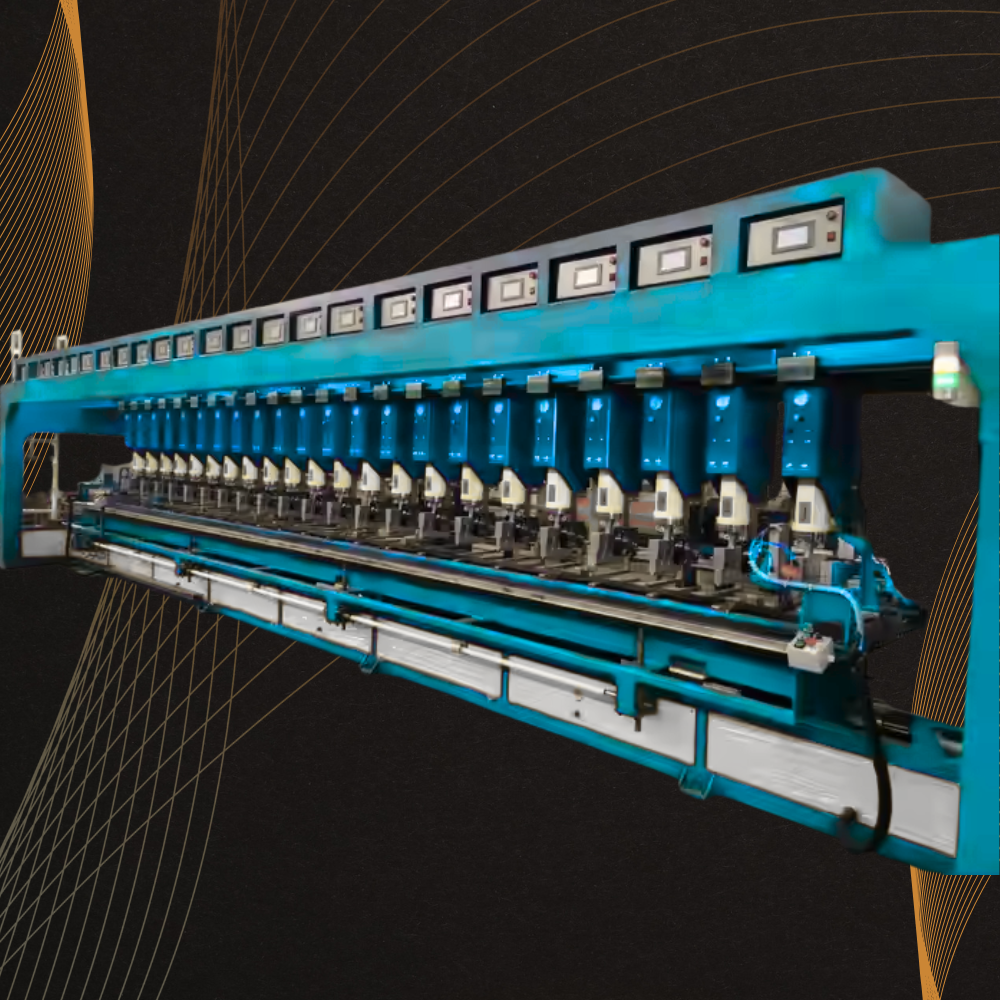

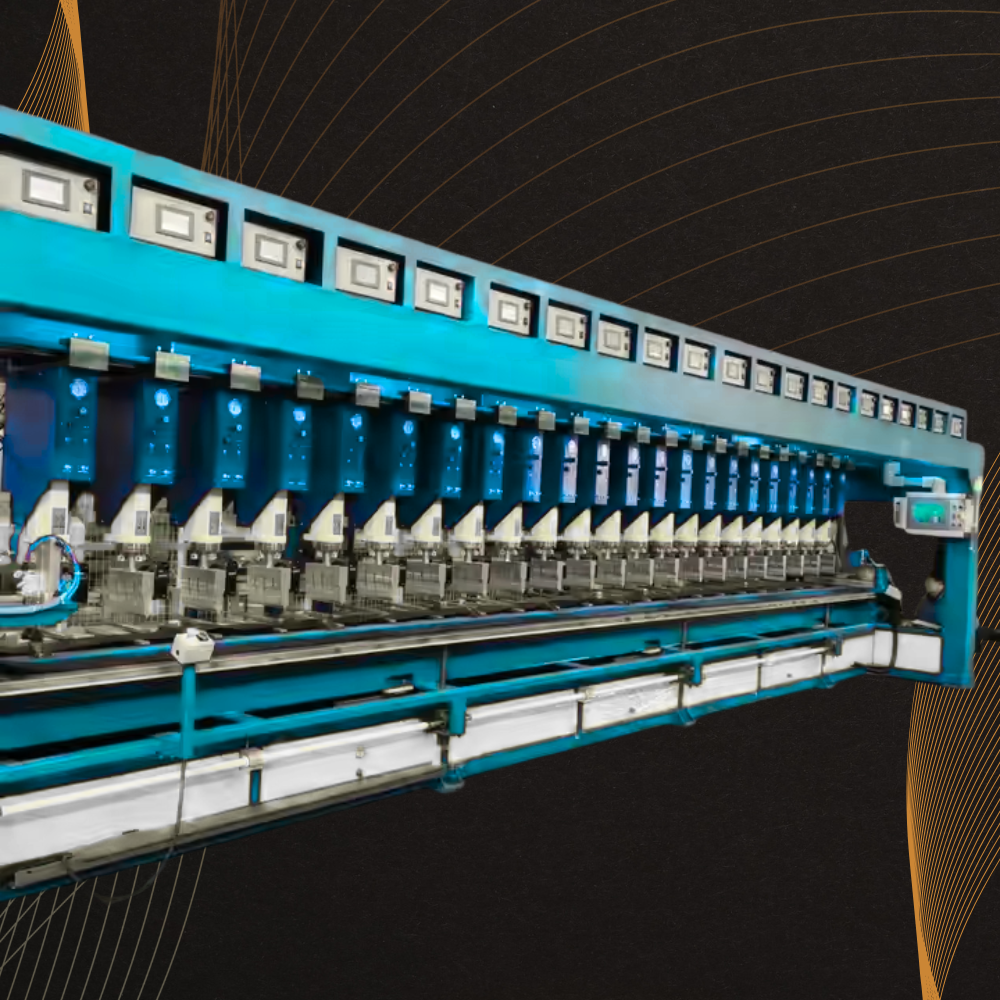

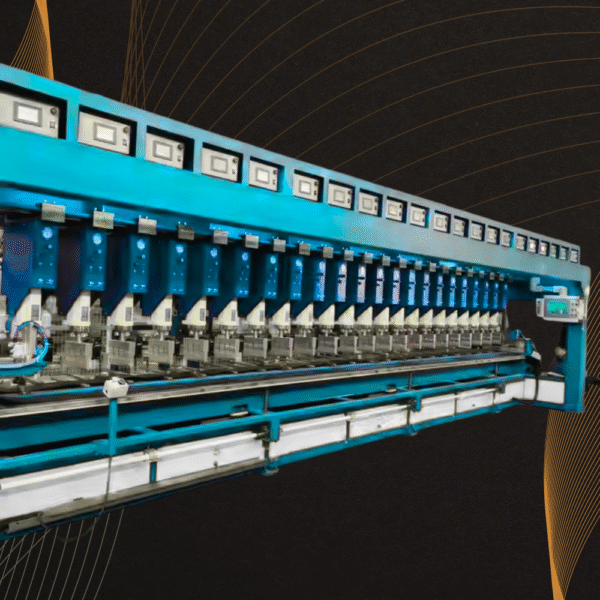

Key Features & Benefits
-
High Welding Power (61.6 kW)
Capable of handling large-area welding with uniform penetration and minimal heat distortion. -
Wide Welding Area Coverage
Supports multiple welding widths: 5 cm, 10 cm, 15 cm, and 20 cm up to 1000 cm in length—ideal for large-format geocell sheets. -
Fast Welding Cycles
Adjustable welding time ranging from 0.01 to 9.99 seconds, optimizing productivity in high-volume applications. -
Fully-Automated Operation
Advanced automation ensures consistent welds, reduced manual intervention, and higher repeatability in production. -
Heavy-Duty Construction
Built with a 10m x 2m x 2.2m steel body weighing 8500 kg, it ensures long-term stability and vibration-free operation. -
Energy-Efficient and Eco-Friendly
Ultrasonic welding requires no glue, solvent, or flame—minimizing emissions and energy usage while ensuring worker safety. -
Customizable Color & OEM/ODM Support
Machine exterior color and features can be tailored to meet your branding or operational requirements.
Technical Specifications
| Parameter | Details |
|---|---|
| Power Output | 61.6 kW |
| Frequency | 15 kHz |
| Voltage | 380V (3-Phase) |
| Welding Area Options | 5 cm, 10 cm, 15 cm, 20 cm × up to 1000 cm |
| Welding Time Range | 0.01 to 9.99 seconds |
| Machine Dimensions | 10 m × 2 m × 2.2 m |
| Machine Weight | 8500 kg |
| Welding Materials | PE, PP, HDPE, PVC, EVA |
| Operation Mode | Fully-Automated |
| Color | Blue |
| Certifications | CE, ISO |
| OEM/ODM Availability | Both Accepted |
| Packaging Type | Wooden Packing |
|
Single gross weight
|
90 kg |
| Head | 30 Head |
| Brand | Lingke |
Typical Uses
-

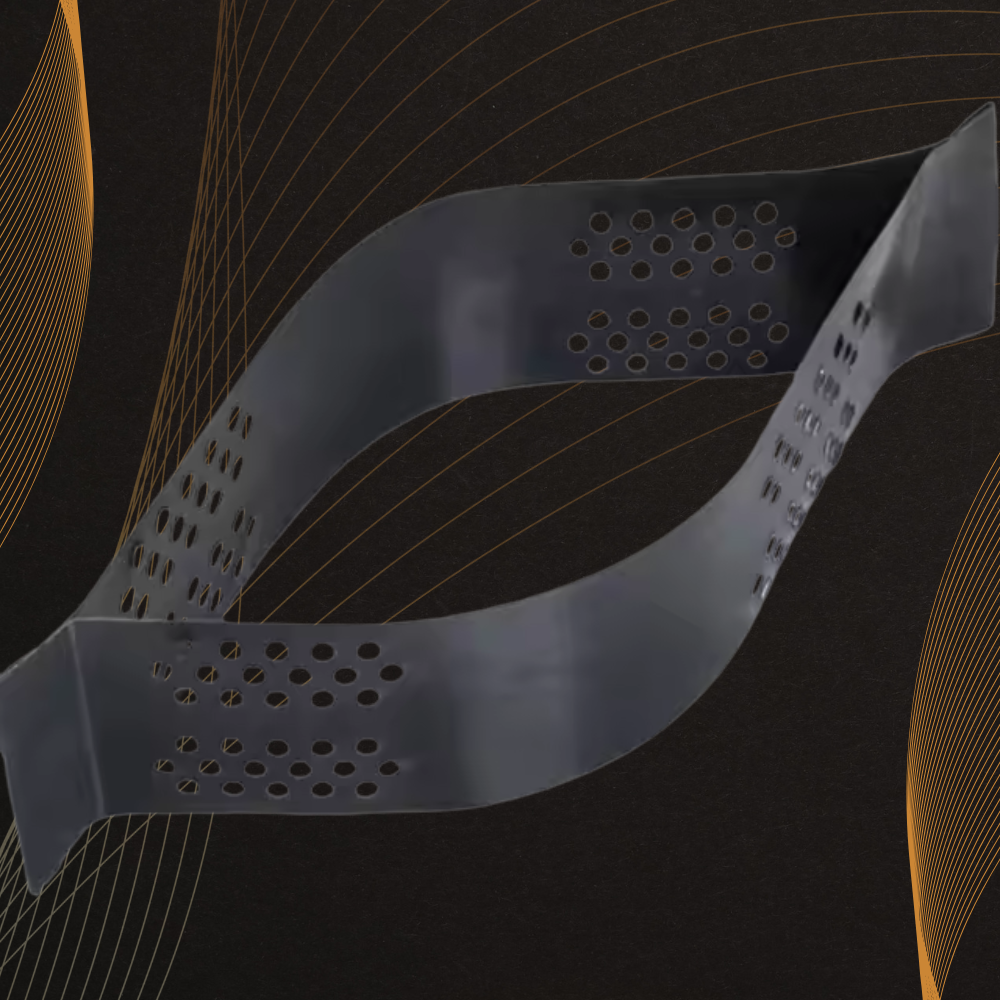

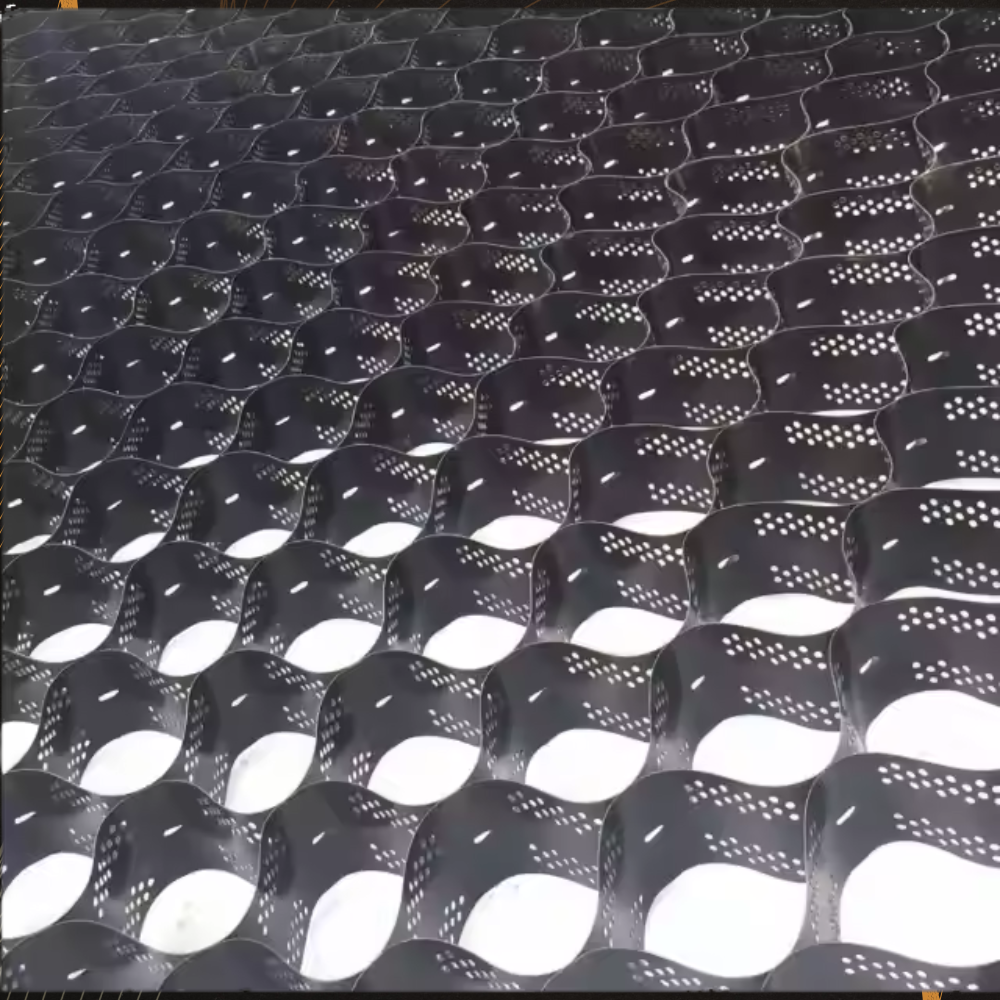

Geocell Fabrication for Soil Stabilization
-
Reinforcement of Roadbeds and Embankments
-
Channel Protection and River Bank Linings
-
Retaining Wall and Load Support Systems
-
Construction of Erosion Control Structures
-
Military or Mining Geosynthetic Deployment
Applications by Industry
1. Civil Engineering & Infrastructure
-
Geocell panel welding for highways, flyovers, and roads.
-
Slope and embankment reinforcement for public infrastructure.
2. Environmental & Landscaping Projects
-
Erosion control in riverbeds and channels.
-
Land reclamation, vegetated walls, and green slope retention.
3. Mining & Oil Fields
-
Heavy-load bearing support structures.
-
Temporary or permanent roadway construction on soft soils.
4. Agriculture & Irrigation
-
Drainage systems and agricultural embankments.
-
Canal lining and containment areas for irrigation.
5. Military & Defense
-
Portable, quick-deploy road systems.
-
Ground reinforcement for camp setups in difficult terrains.
