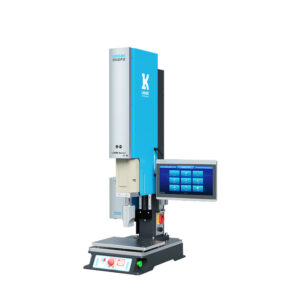

Servo 2 Ultrasonic Plastic Welding Machine

850,000.00

Product Specifications:

  1. Utilizes high precision servo motor in conjunction with precision electric cylinder for stable output, enabling accurate control over welding speed, stroke, and multi-stage welding, resulting in enhanced welding efficiency.
  2. Features a digital intelligent control system with a user-friendly interface available in both Chinese and English. Equipped with a 15.6″ full-color HD touch screen for intuitive operation. Key permissions are protected by password for enhanced security.
  3. Supports Wi-Fi and 4G wireless network connectivity, allowing for remote system operation and maintenance. Enables more convenient troubleshooting and maintenance processes.

Machine Features:

  1. Offers 7 welding modes including time, energy, stop vibration, Xn, multi-stroke, absolute stroke, and differential stroke (Servo II) for versatile welding applications.
  2. Provides open signal ports for safety grating, acoustic enclosure, base film weld detection, and roll film, allowing for customizable settings based on specific requirements.
  3. Incorporates quality control functions for monitoring various parameters such as frequency, ultrasonic time, energy, power, welding stroke, and pressure, ensuring accurate analysis and output parameters.
  4. Enables setting upper and lower limits for welding parameters, with automatic determination of welding effect qualification based on these limits, providing judgment signals accordingly.
  5. Supports welding formula setting, storage, and export functions, facilitating easy retrieval and application of welding formulas as per demand.
  6. Equipped with generator protection functions including short circuit, overcurrent, overvoltage, and overload protection, with timely detection of loose or damaged horn, booster, and converter components, issuing alarms as needed.
  7. Features a linear slide connection between the head and column, complemented by electric lifting for smooth and jam-free action.
  8. Constructed with high-precision, high-strength steel for the horizontal plate and column, treated with anti-oxidation for enhanced rigidity, stable operation, and tilt-free performance, thereby improving welding efficiency and quality.
  9. Utilizes international first-class brand accessories for powerful, high-quality, and stable welding performance.
  10. Offers digital amplitude adjustment with welding amplitude adjustable from 10% to 100%, allowing for precise adjustment according to specific welding needs.
  11. Equipped with intelligent electric control lift for convenient and quick mold adjustment.
  12. Features imported piezoelectric ceramic chip in the converter for stability and reliability.
  13. Amplifier constructed with all titanium alloy for durability, high energy transfer efficiency, and good increase effect.
  14. Automatically scans the frequency of the transducer component periodically, correcting frequency drift of the converter as needed.

Specifications:

  • Model: L3000 Servo II
  • Frequency: 20kHz (15kHz optional)
  • Power: 2000W, 3000W, 4000W
  • Input Voltage: AC220V
  • Machine Journey: 511mm
  • Oscillation Time: 0.001-9.99s
  • Welding Capability: Φ170mm, Φ300mm
  • Operation Switch: Two-hand start, emergency brake button at front, external control switches supported
  • Dimensions (Press): 680×400×1656 mm
  • Dimensions (Generator – Digital): 436×124×270 mm
  • Weight (Press): 162.5kg
  • Weight (Generator – Digital): 8kg
