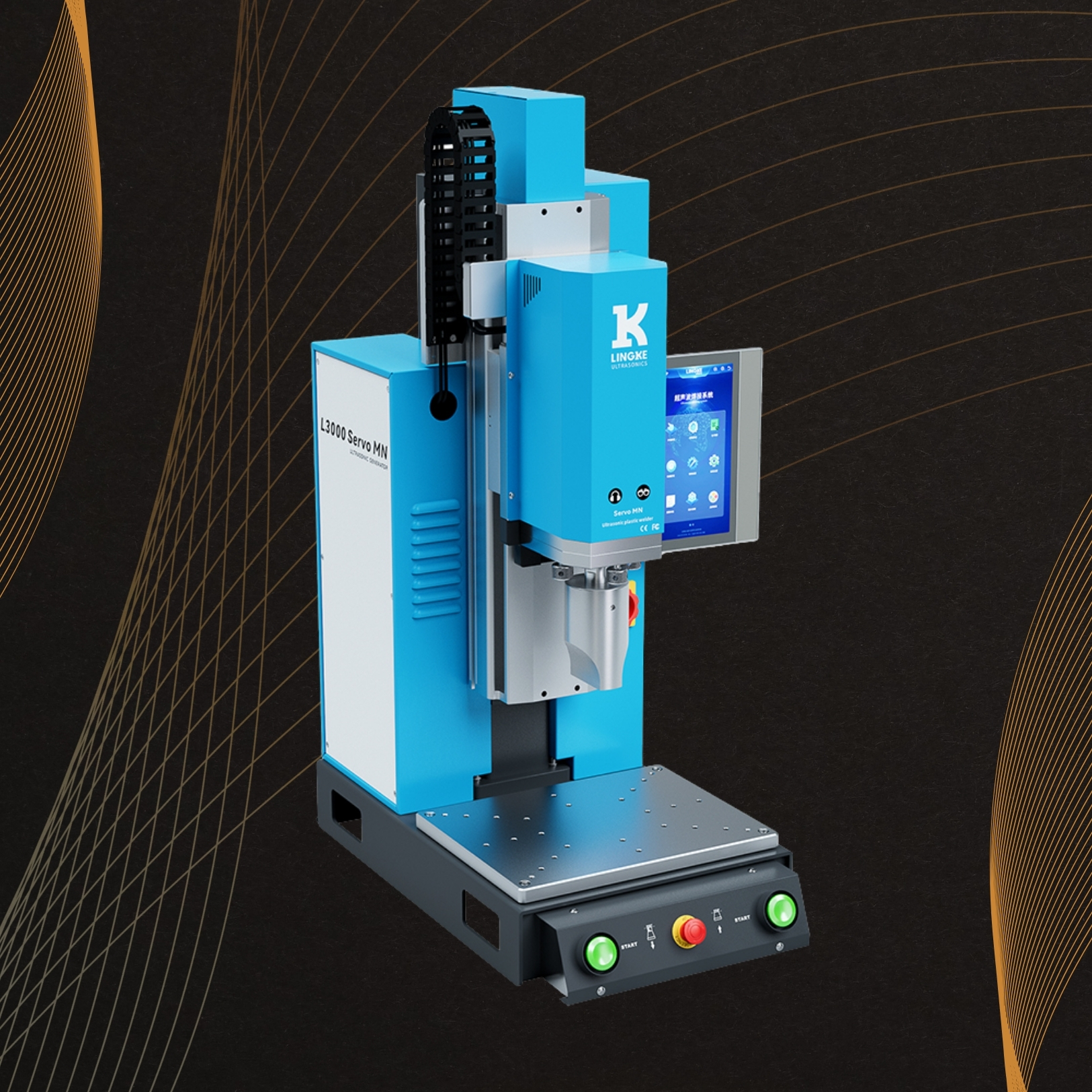

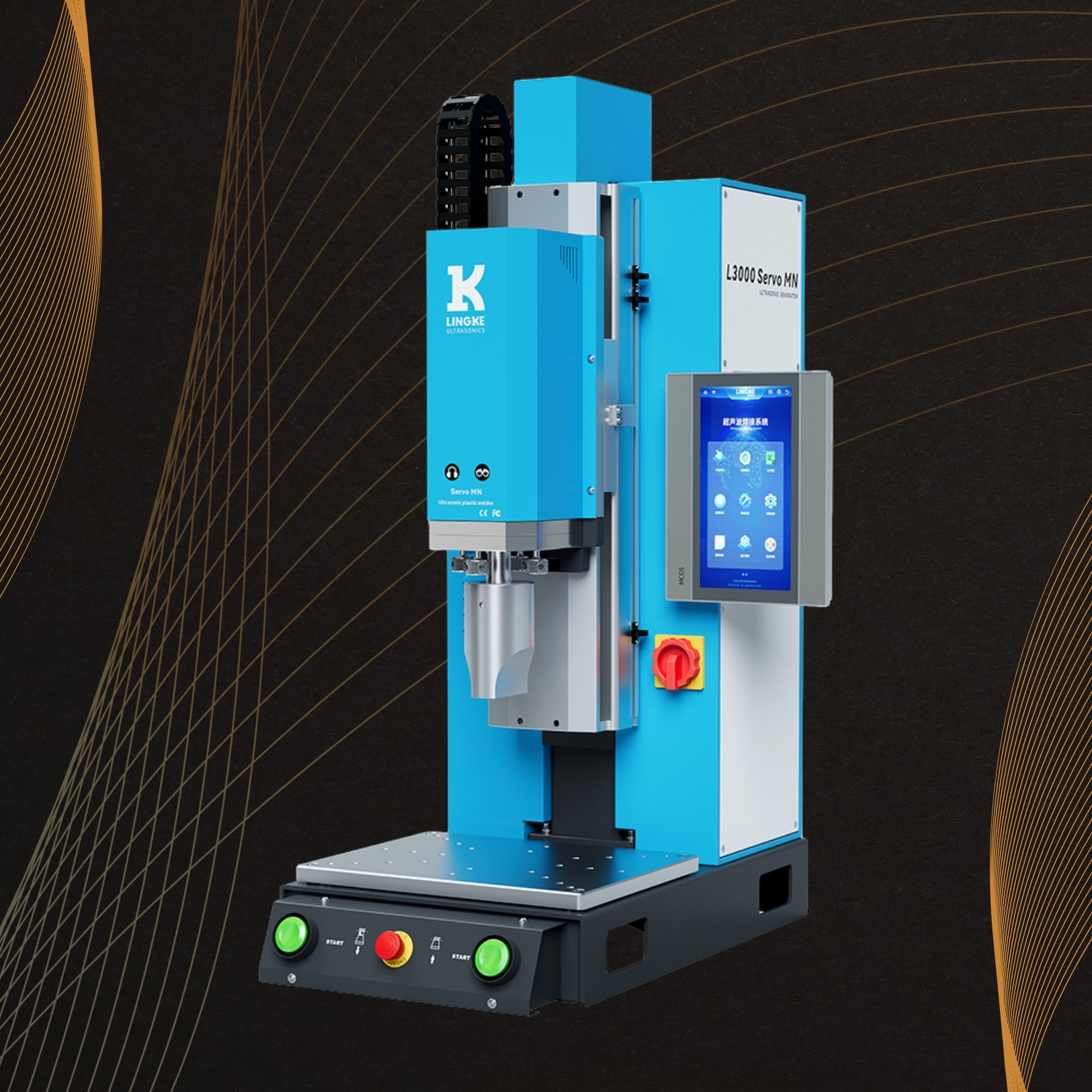

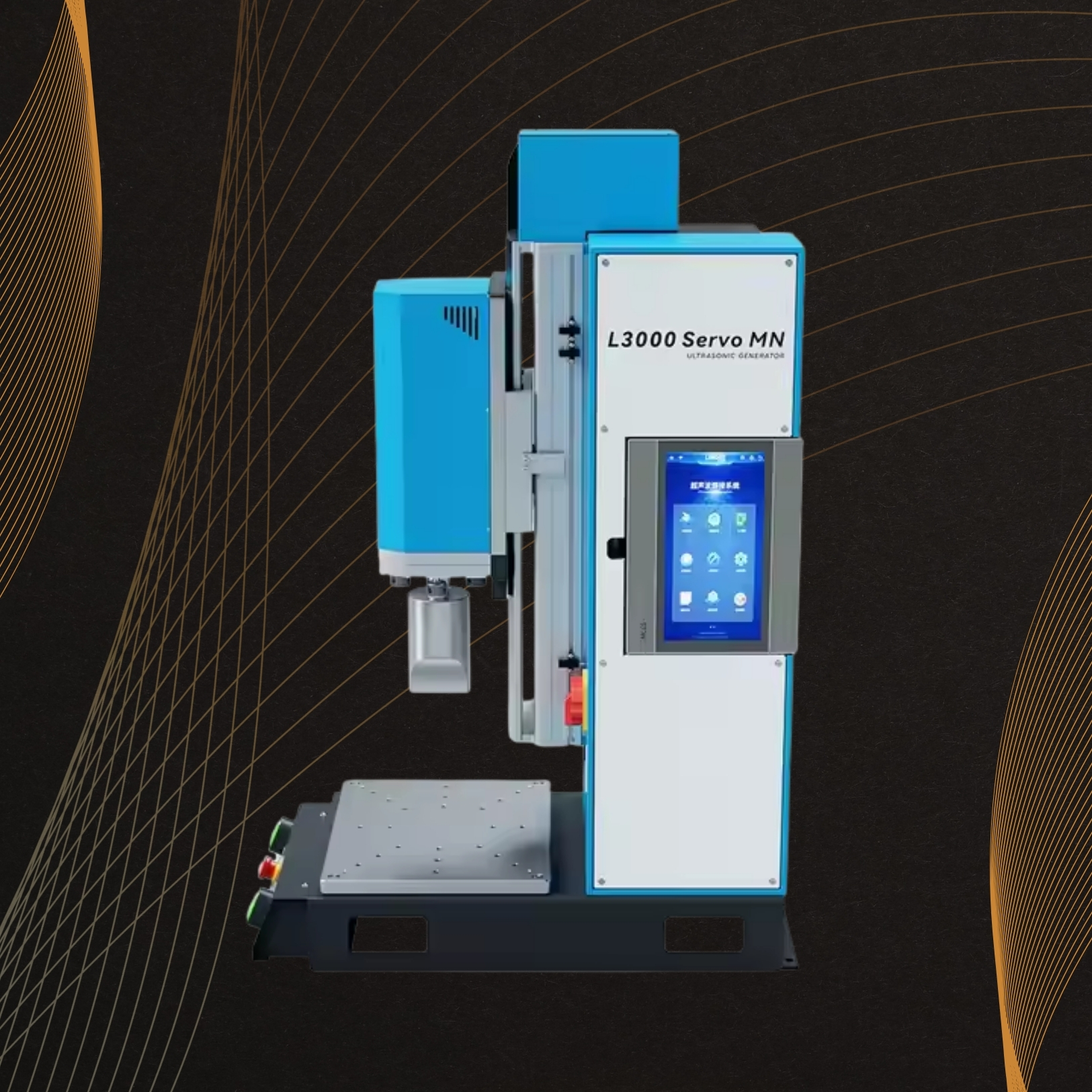

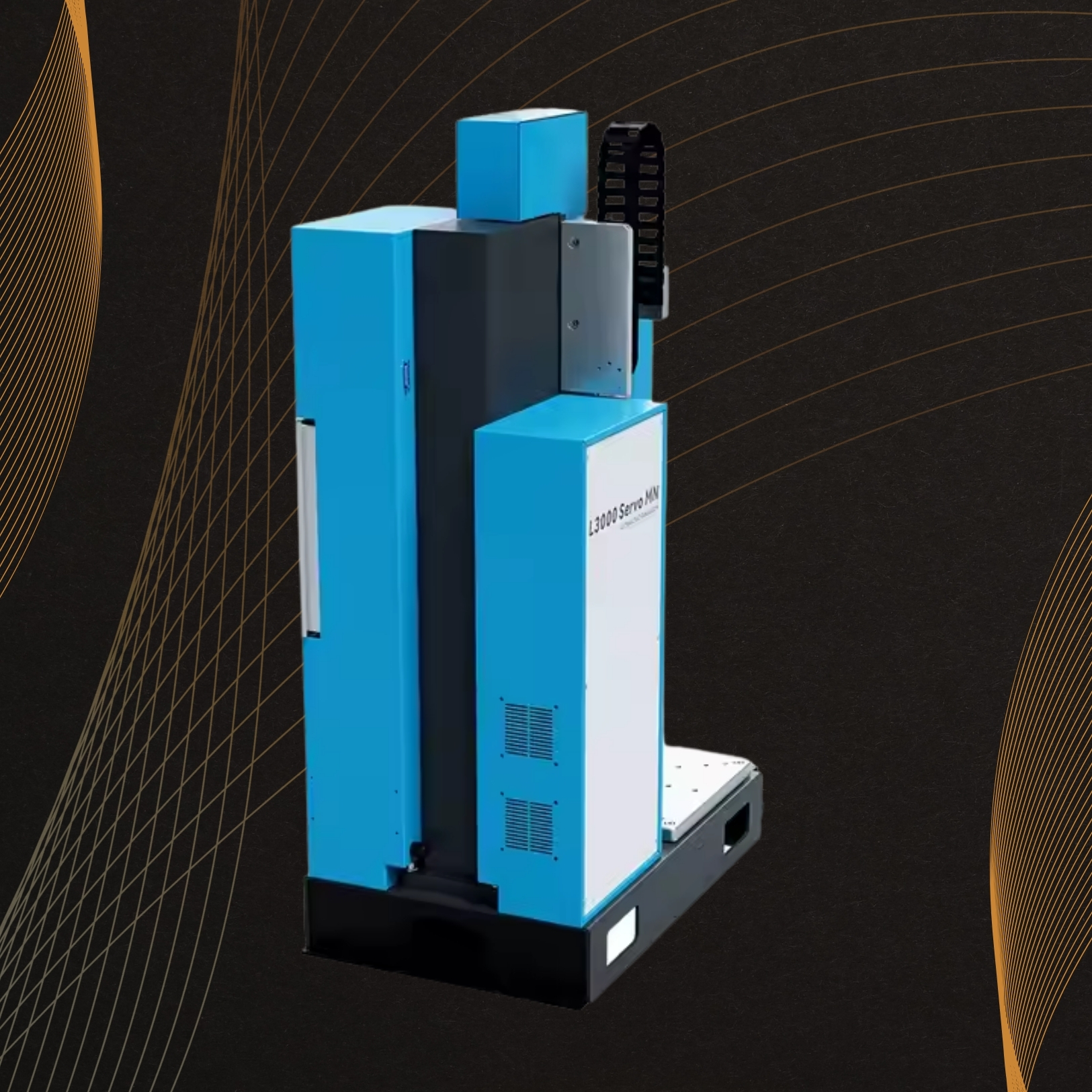

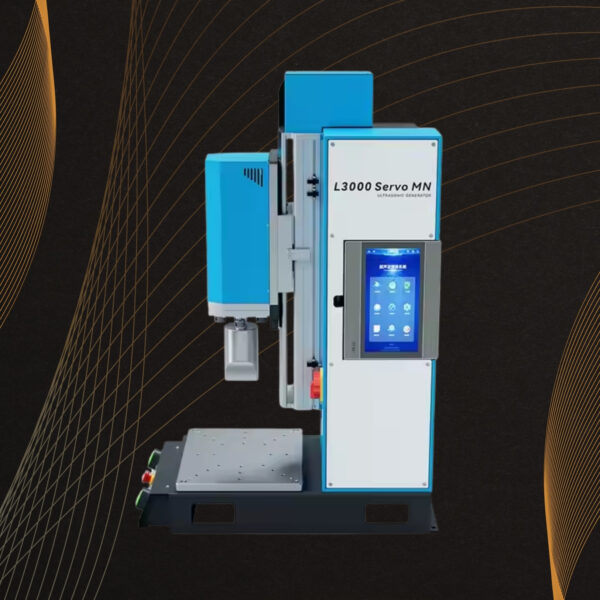

Ultrasonic Plastic Welding Machine


Product Specifications:

  • Ultrasonic Frequency: 15kHz
  • Ultrasonic Power: 2600W/3200W
  • Welding Modes: Time, Energy, Absolute Range, Manual


  1. High-precision servo motors ensure precise control.
  2. High-definition touch screen and digital intelligent control system for easy operation.
  3. Supports adjustment and monitoring of welding parameters.
  4. Equipped with external signal ports for enhanced connectivity.
  5. Allows setup, storage, and export of welding recipes.
  6. Complies with international CE and FCC certification standards.

Product Features:

  1. Robust column structure ensures high rigidity, with a rigid connection linear group for precise head and column connection strength.
  2. Incorporates various welding control technologies for optimized performance.
  3. Optional bottom mold level adjustment, with XY welding platform available.
  4. Self-detection function for failure inspection, ensuring the functionality of each switch.
  5. Data management system allows for self-storage and transmission of welding data, facilitating intelligent data tracking.
  6. Compliant with European CE safety standards for operation.
  7. Servo stroke control system offers precision down to 10 micrometers.

Technical Specifications:

  • Model: L3000 Servo MN (Digital/Analog Optional)
  • Frequency: 20kHz (Digital), 15kHz (Analog)
  • Power:
    • Digital Type: 2000W, 2600W, 3200W
    • Analog Type: 2600W, 3200W
  • Input Voltage: AC220V
  • Horn Stroke: 350mm
  • Output Time:
    • Digital Type: 0.01-9.99S
    • Analog Type: 0.05-9.99S
  • Welding Capability: Φ170mm (Digital), Φ180mm (Analog)
  • Operation Switch: Two-hand start, emergency brake at the front, external switch attachment possible
  • Size(mm)/Weight:
  • Press: 700X400X1106, Weight: 135.5kg (Digital Type)
  • Press: 700X400X1106, Weight: 144.0kg (Analog Type)
