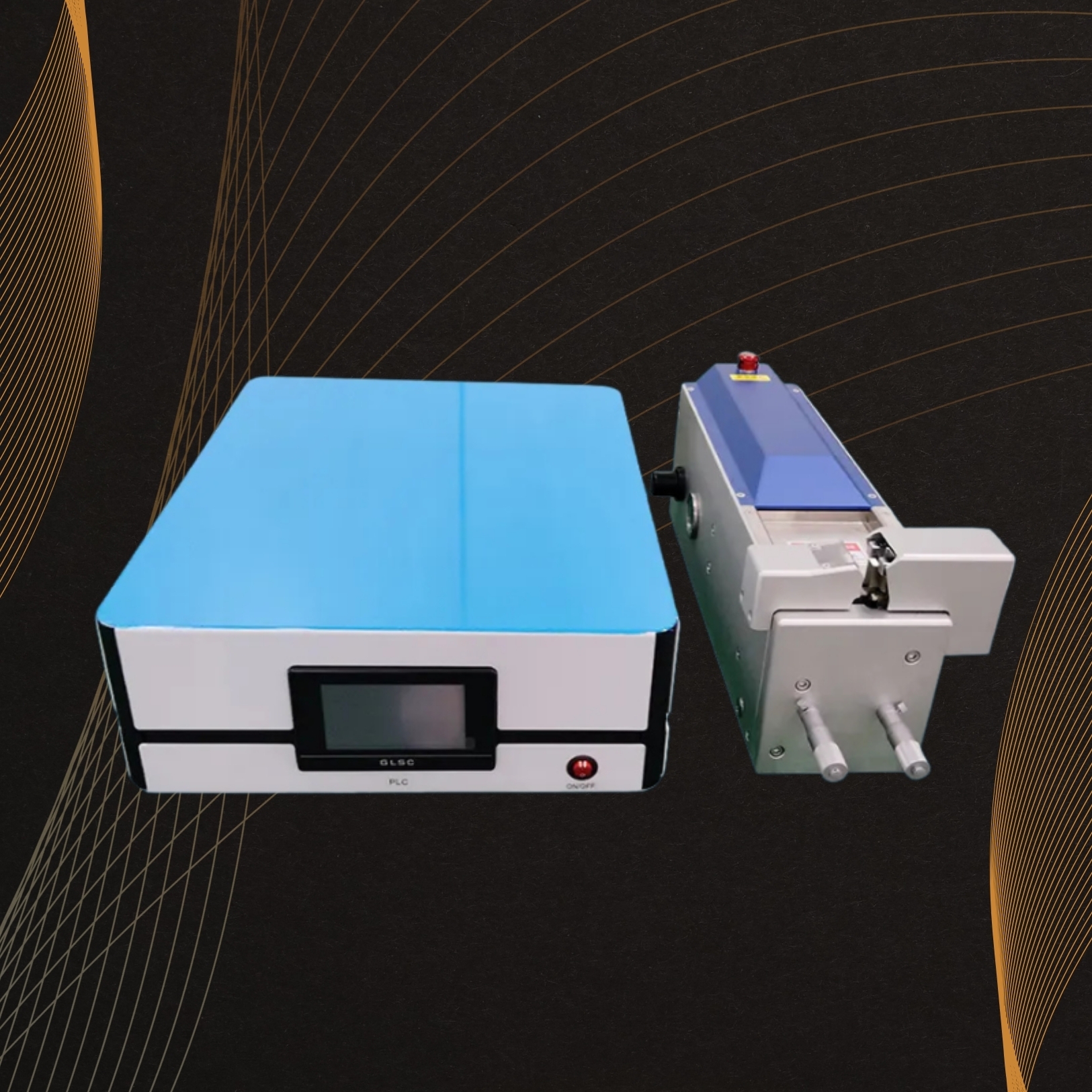

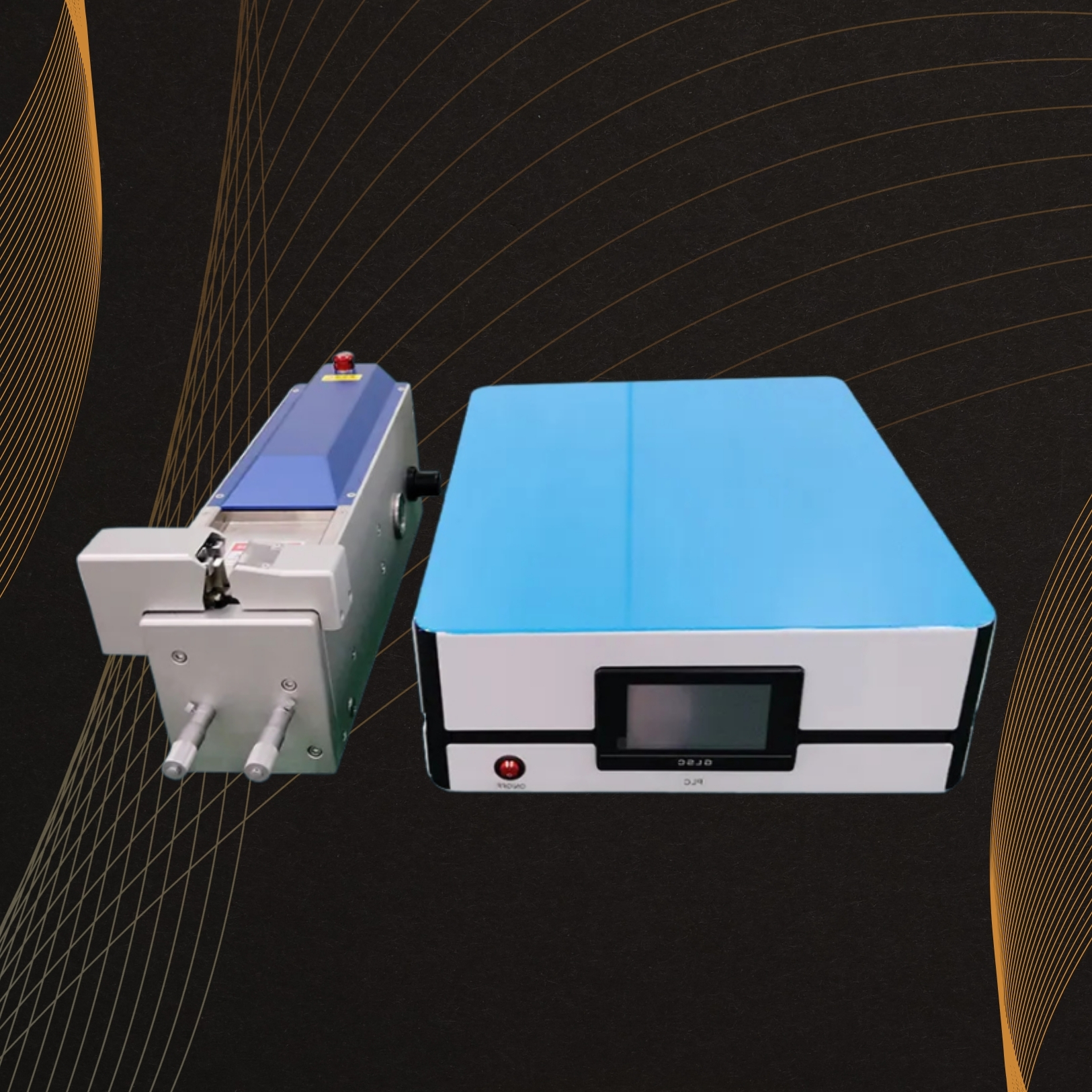

Ultrasonic Wire Harness Welding Machine

Product Details:

Features:

1. Requires no heating, operating at low temperatures.
2. Welding process produces no sparks, ensuring environmental safety.
3. Compact size and easy maintenance for enhanced convenience.
4. Post-welding conductivity is excellent, with an extremely low or negligible resistance coefficient.
5. Short welding time with no need for flux, gas, or solder.
6. Welding speed is under 0.5 seconds, suitable for integration into automated production lines.
7. Commonly utilized in automotive wire harness processing, wire end knotting, wire connection, and similar welding applications.

Technical Specifications:

• Model: LK-M2030-H
• Frequency: 20kHz
• Power: 2000/3000W
• Input Voltage: AC220V
• Air Source Requirements: Minimum 0.6MPa
• Cylinder Diameter: 100mm
• Welding Area: 0.35²-16mm²
• Size (mm): Rack Size – 608.5 x 122 x 160 mm
• Rack Weight: 44kg
